Question 3 of 11 · 5.0 marks

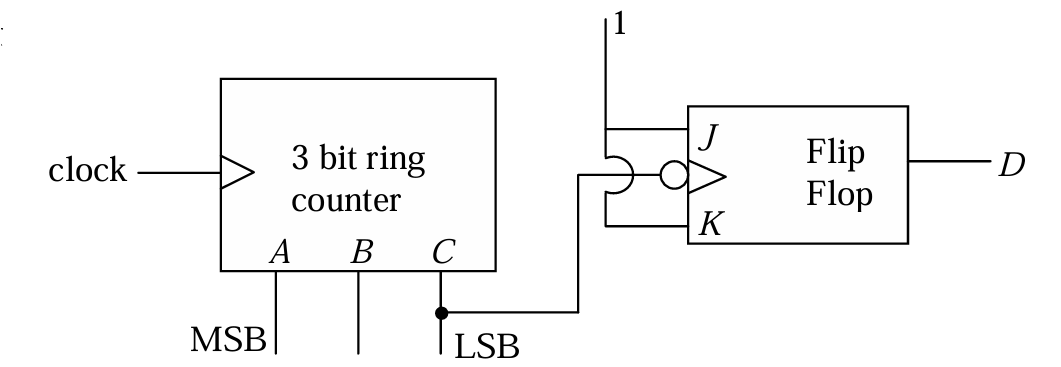

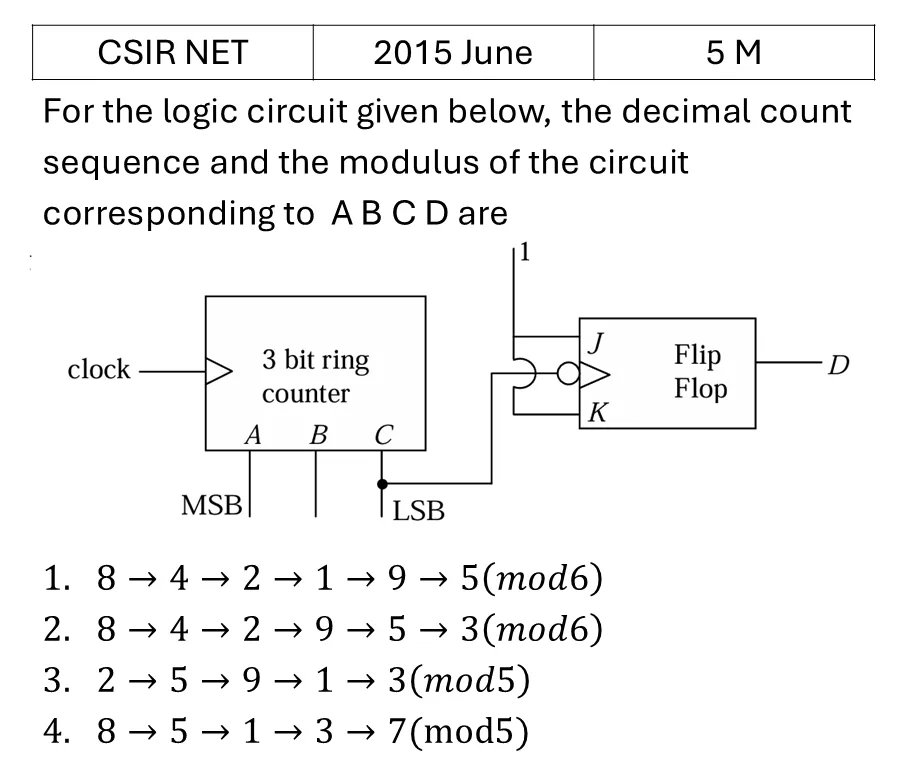

For the logic circuit given below, the decimal count sequence and the modulus of the circuit corresponding to A B C D are

1. 1$8\to 4\to 2\to 1\to 9\to 5\left(mod6\right)$
2. 2$8\to 4\to 2\to 9\to 5\to 3\left(mod6\right)$
3. 3$2\to 5\to 9\to 1\to 3\left(mod5\right)$
4. 4$8\to 5\to 1\to 3\to 7(mod5)$

Correct answer: Option 2
