Question 2 of 11 · 5.0 marks

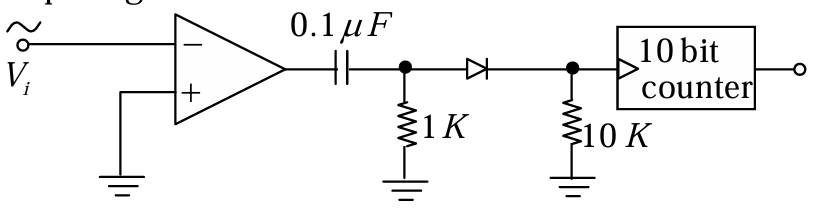

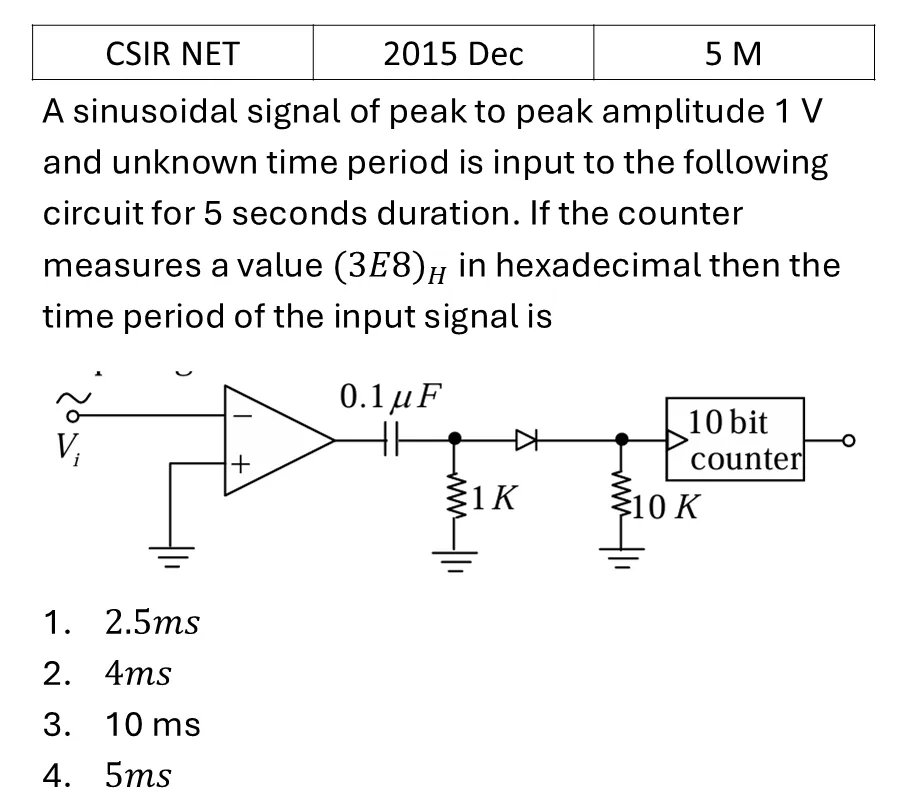

A sinusoidal signal of peak to peak amplitude 1 V and unknown time period is input to the following circuit for 5 seconds duration. If the counter measures a value $(3E8{)}_H$ in hexadecimal then the time period of the input signal is

1. 1$2.5ms$
2. 2$4ms$
3. 310 ms
4. 4$5ms$

Correct answer: Option 4
