Canonical Ensemble — CSIR Net PYQ (Question 23)

A Canonical Ensemble previous-year question (PYQ) from Statistical Mechanics (CSIR Net). Read the question, check the correct answer, then practise the full topic.

Question 23 of 36 · 3.5 marks

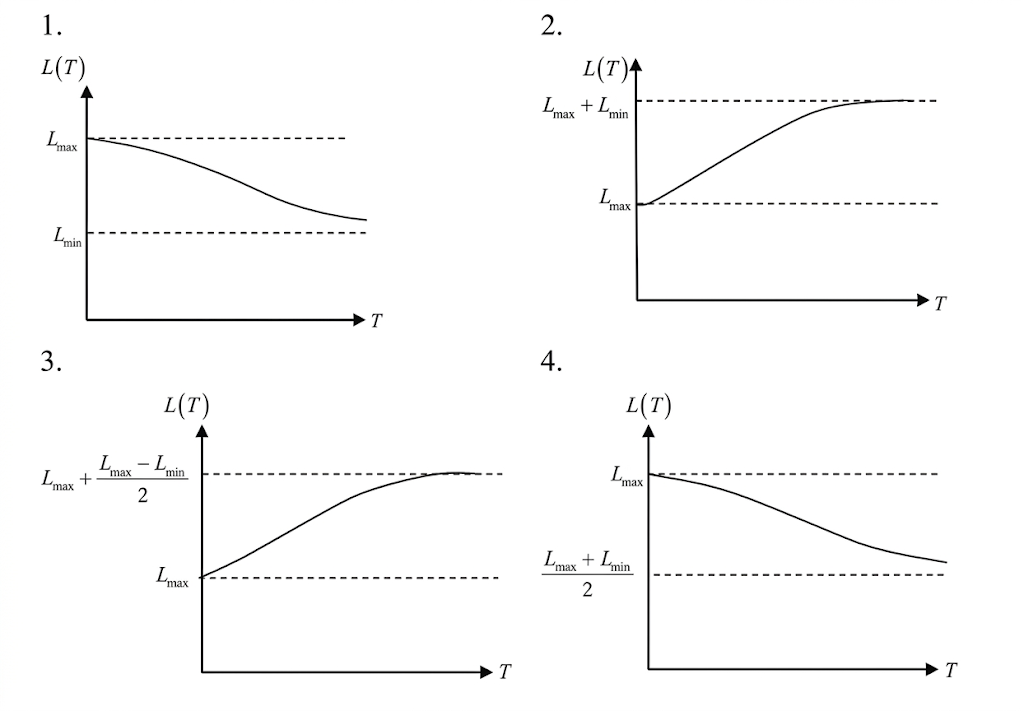

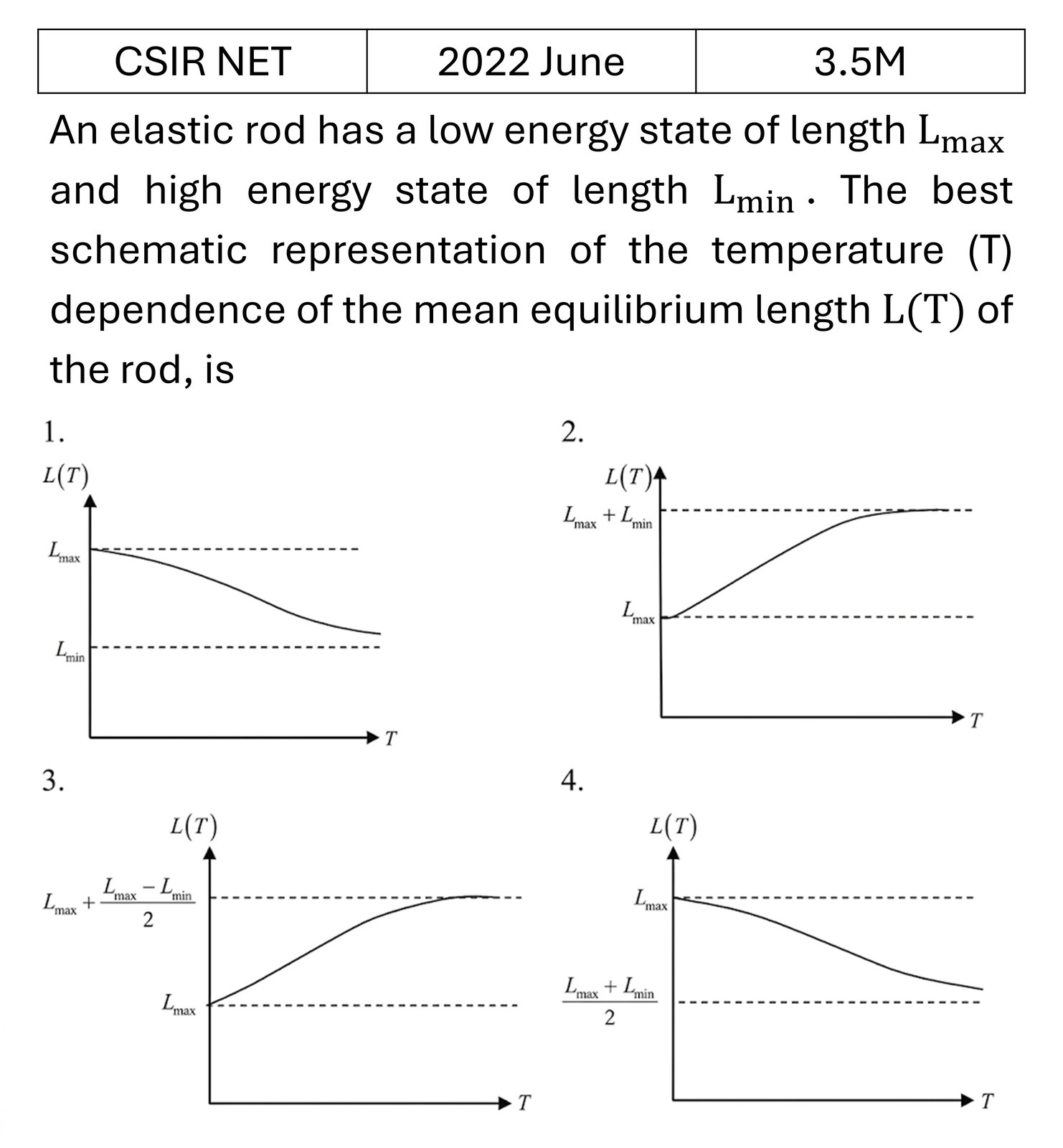

An elastic rod has a low energy state of length $L_{max}$ and high energy state of length $L_{min}$. The best schematic representation of the temperature (T) dependence of the mean equilibrium length $L(T)$ of the rod, is

1. 1
2. 2
3. 3
4. 4

Correct answer: Option 4
