Flip flops/Counters/Registers/microcontroller etc. — CSIR Net PYQ (Question 5)

A Flip flops/Counters/Registers/microcontroller etc. previous-year question (PYQ) from Electronics (CSIR Net). Read the question, check the correct answer, then practise the full topic.

CSIR Net Electronics Flip flops/Counters/Registers/microcontroller etc.

Question 5 of 11 · 5.0 marks

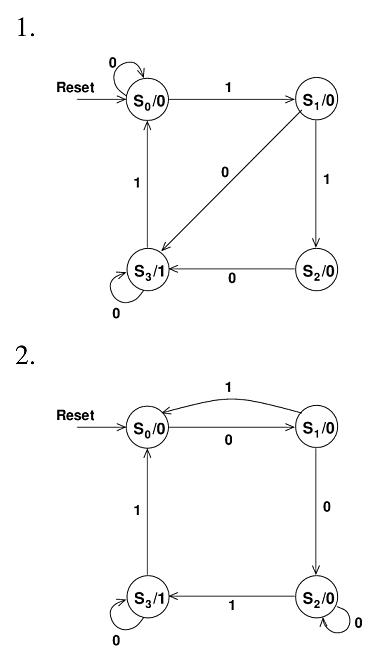

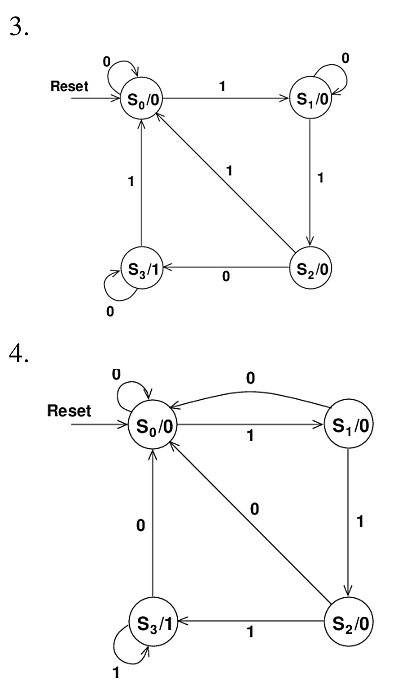

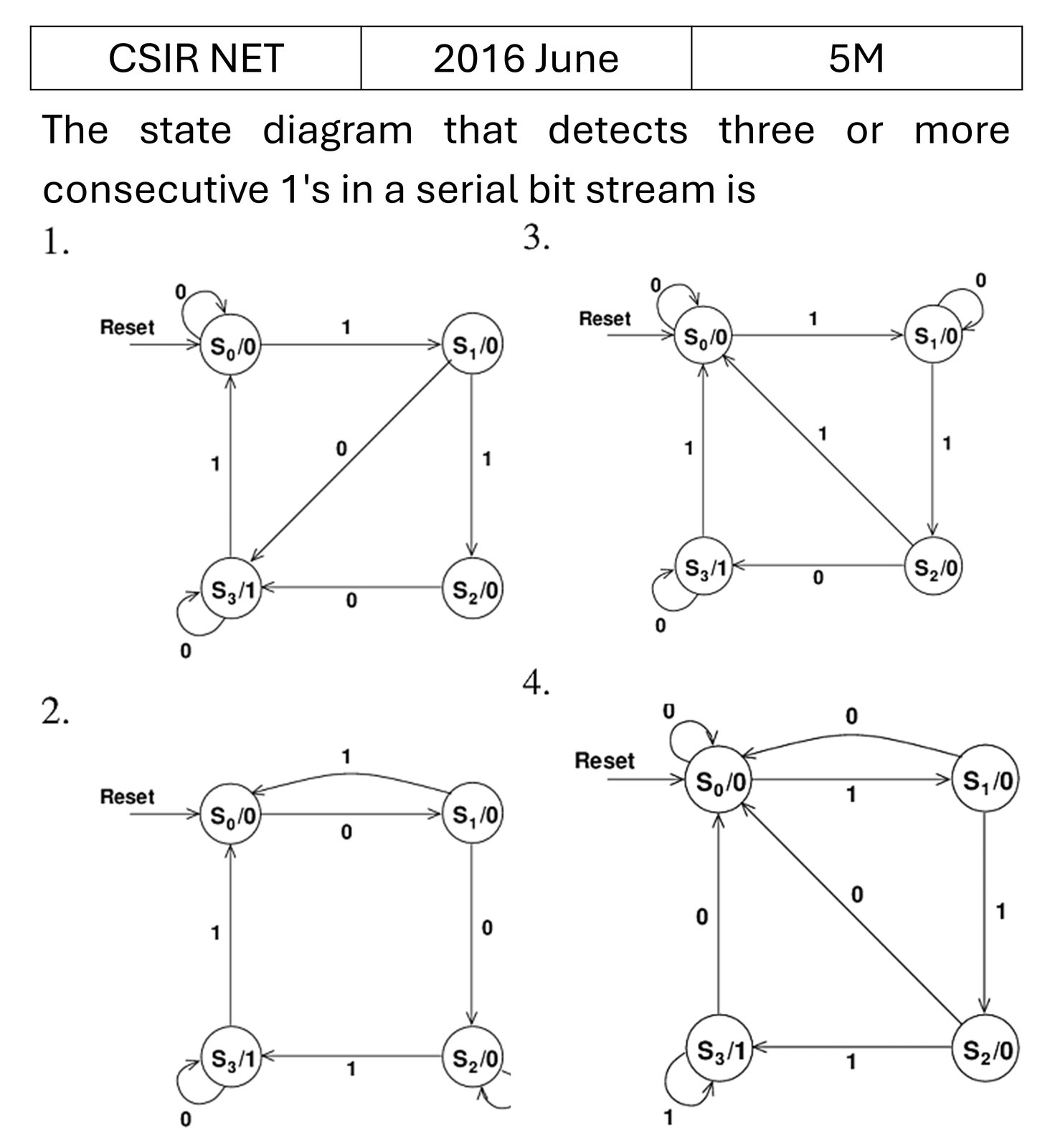

The state diagram that detects three or more consecutive 1's in a serial bit stream is
Diagram for question 5Diagram for question 5
  1. 1
  2. 2
  3. 3
  4. 4
Correct answer: Option 4
← PreviousNext →

Practise all 11 Flip flops/Counters/Registers/microcontroller etc. questions with instant feedback.

Practise this topic →
