Flip flops/Counters/Registers/microcontroller etc. — CSIR Net PYQ (Question 10)

A Flip flops/Counters/Registers/microcontroller etc. previous-year question (PYQ) from Electronics (CSIR Net). Read the question, check the correct answer, then practise the full topic.

Question 10 of 11 · 3.5 marks

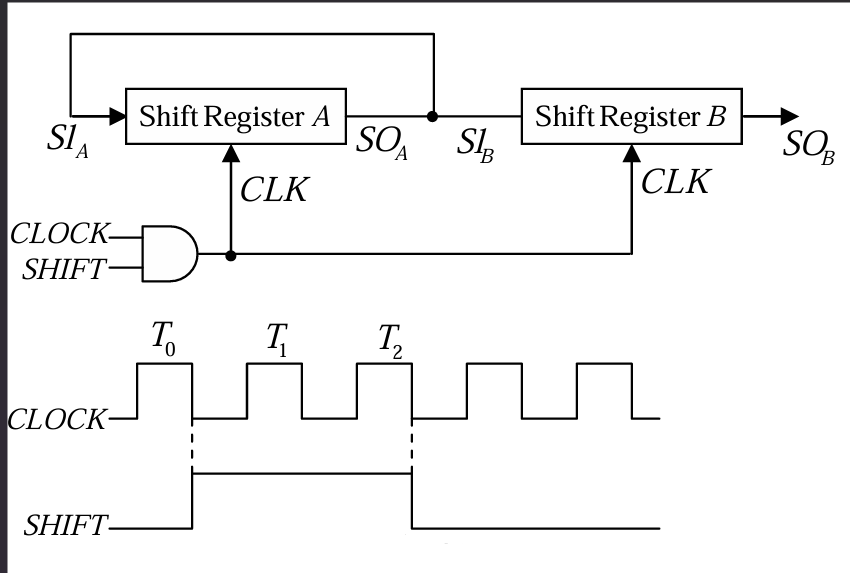

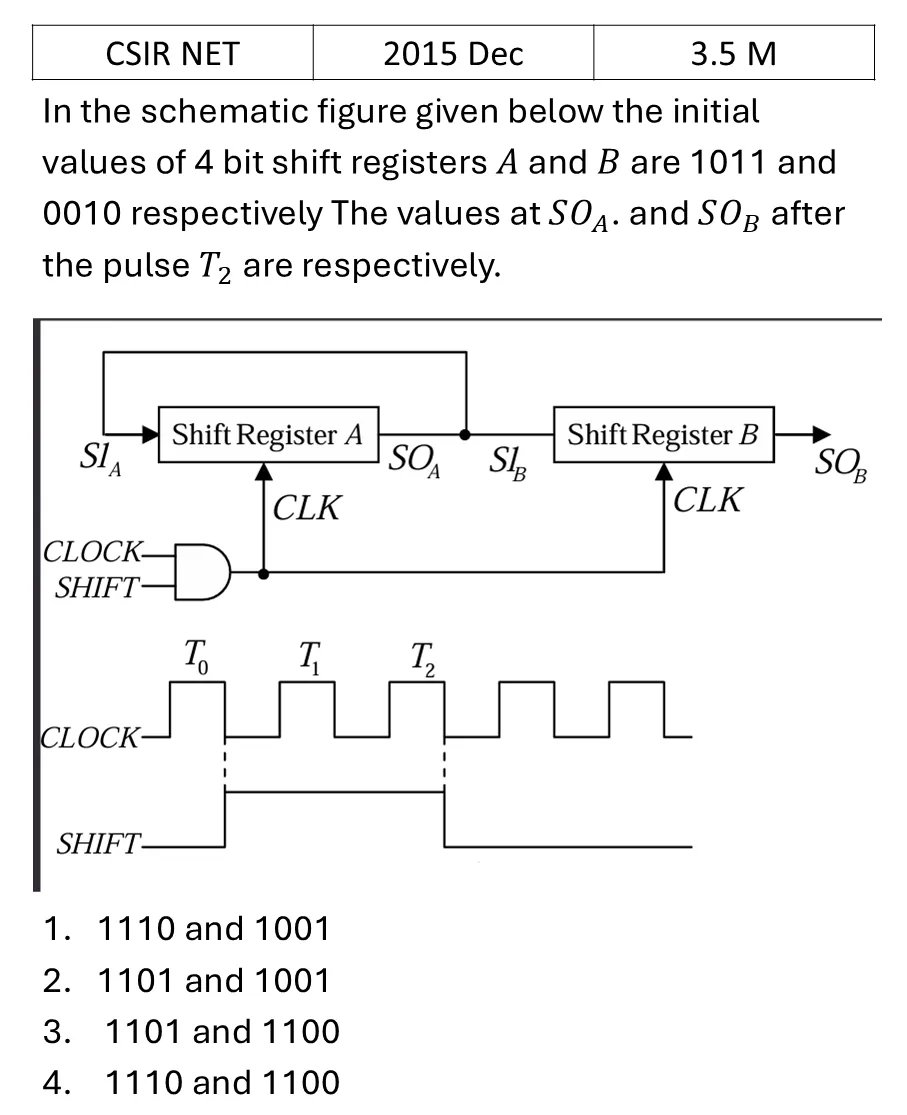

In the schematic figure given below the initial values of 4 bit shift registers

A

and

B

are 1011 and 0010 respectively The values at

S O_{A}

. and

S O_{B}

after the pulse

T_{2}

are respectively.

11110 and 1001
21101 and 1001
31101 and 1100
41110 and 1100

Correct answer: Option 4
