Question 4 of 4 · 5.0 marks

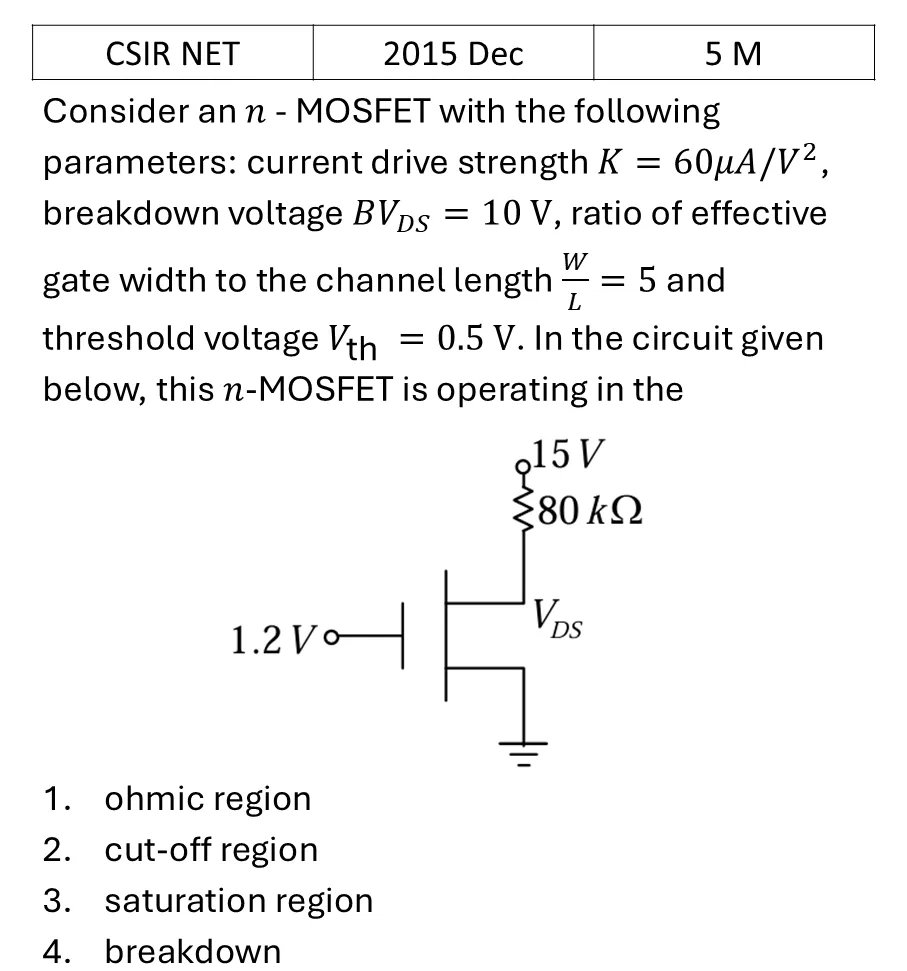

Consider an $n$ - MOSFET with the following parameters: current drive strength $K=60\mu A/V^2$, breakdown voltage $B{V}_{DS}=10V$, ratio of effective gate width to the channel length $\frac{W}{L}=5$ and threshold voltage $V_{th}=0.5V$. In the circuit given below, this $n$ -MOSFET is operating in the

1. 1ohmic region
2. 2cut-off region
3. 3saturation region
4. 4breakdown

Correct answer: Option 3
