Diodes — CSIR Net PYQ (Question 11)
A Diodes previous-year question (PYQ) from Electronics (CSIR Net). Read the question, check the correct answer, then practise the full topic.
Question 11 of 15 · 3.5 marks

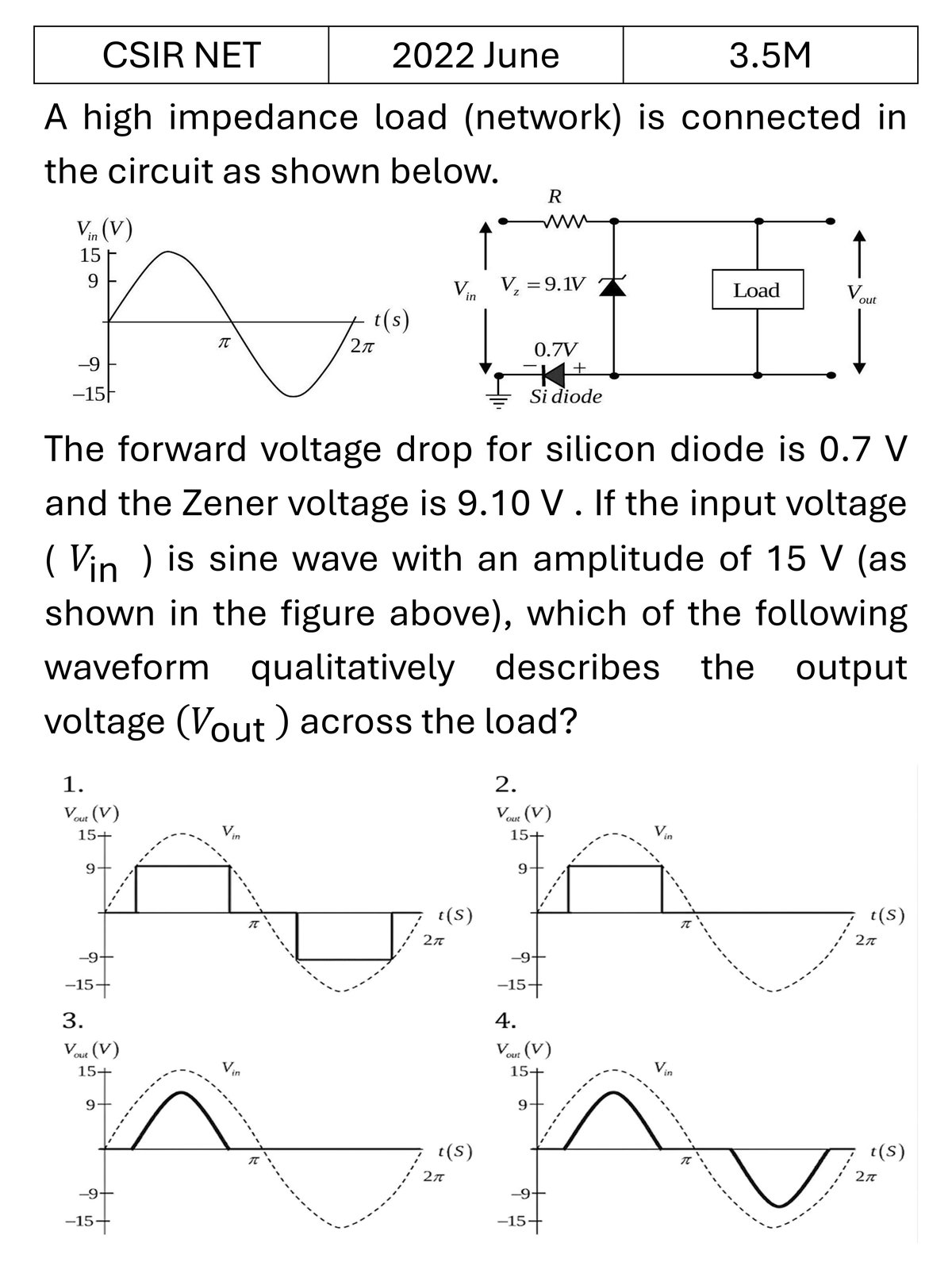

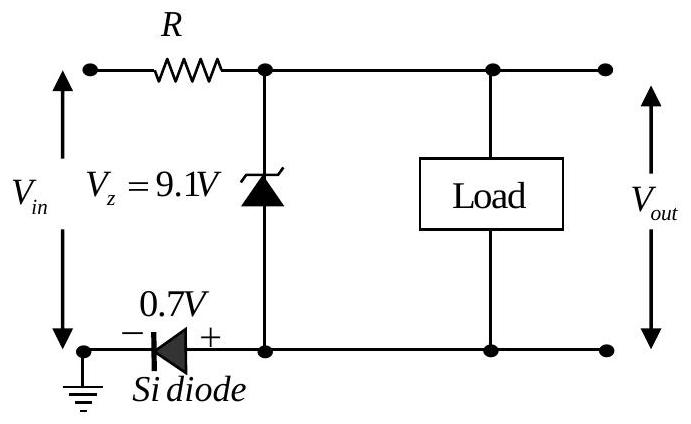

A high impedance load (network) is connected in the circuit as shown below.

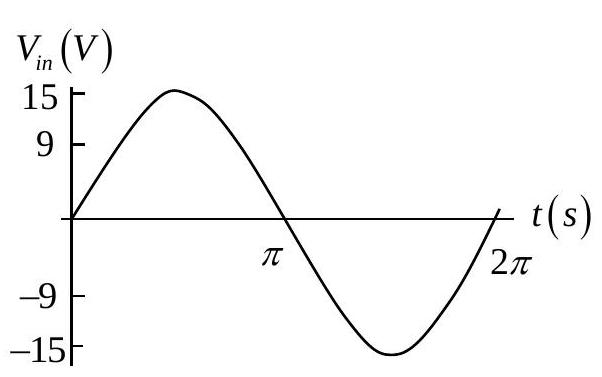

The forward voltage drop for silicon diode is 0.7 V and the Zener voltage is 9.10 V . If the input voltage () is sine wave with an amplitude of 15 V (as shown in the figure above), which of the following waveform qualitatively describes the output voltage across the load?
The forward voltage drop for silicon diode is 0.7 V and the Zener voltage is 9.10 V . If the input voltage () is sine wave with an amplitude of 15 V (as shown in the figure above), which of the following waveform qualitatively describes the output voltage across the load?

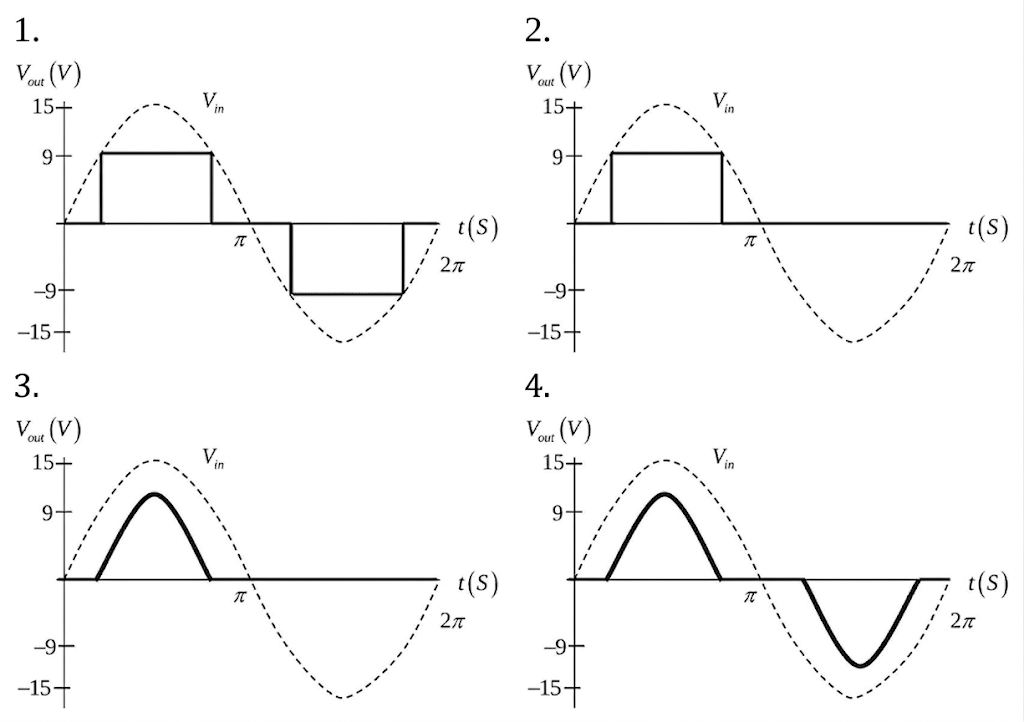

- 1
- 2
- 3
- 4
Correct answer: Option 3
