Digital Electronics — CSIR Net PYQ (Question 1)

A Digital Electronics previous-year question (PYQ) from Electronics (CSIR Net). Read the question, check the correct answer, then practise the full topic.

CSIR Net Electronics Digital Electronics

Question 1 of 16 · 3.5 marks

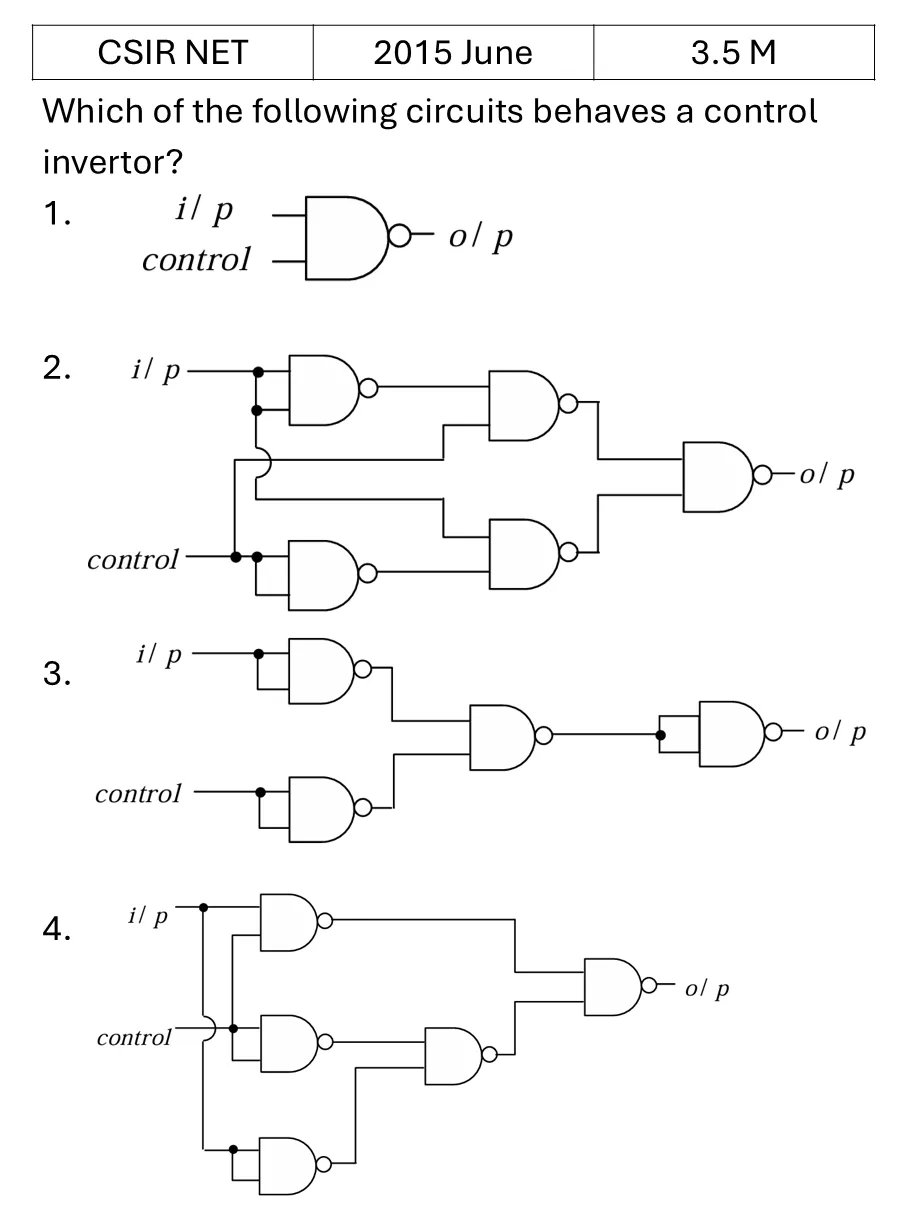

Which of the following circuits behaves a control invertor?
  1. 1option image

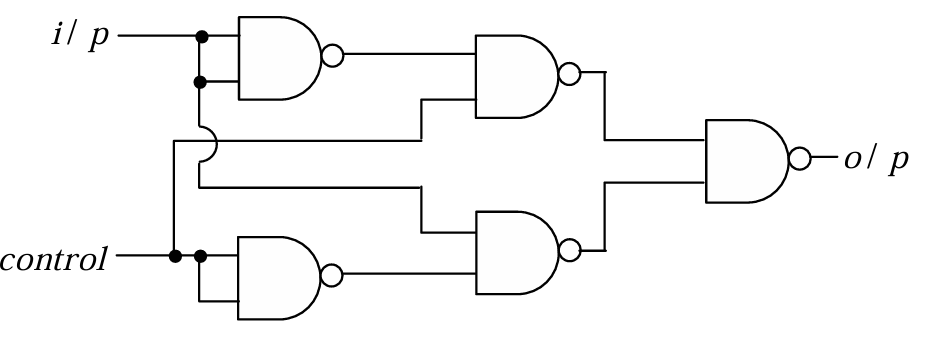

  2. 2option image

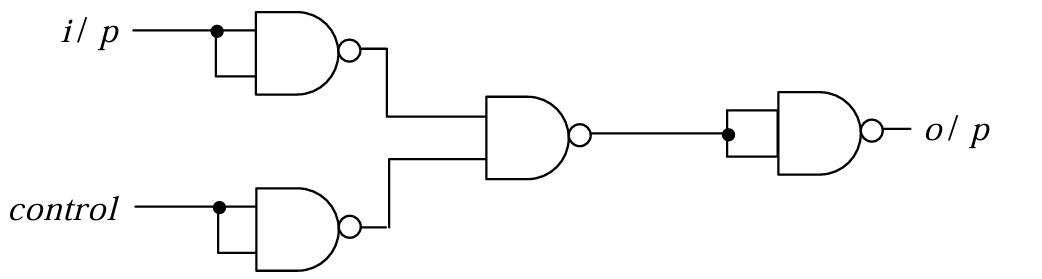

  3. 3option image

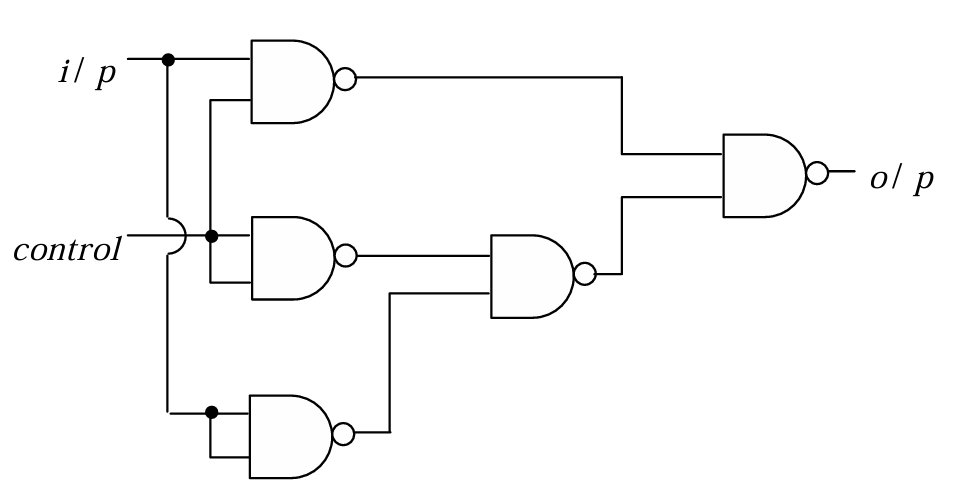

  4. 4option image
Correct answer: Option 2&4
Next →

Practise all 16 Digital Electronics questions with instant feedback.

Practise this topic →

About this question

This Digital Electronics PYQ is part of the Electronics section of CSIR Net. Browse more Digital Electronics questions or join the PhysicsByAaryan live batch for full conceptual coverage.
