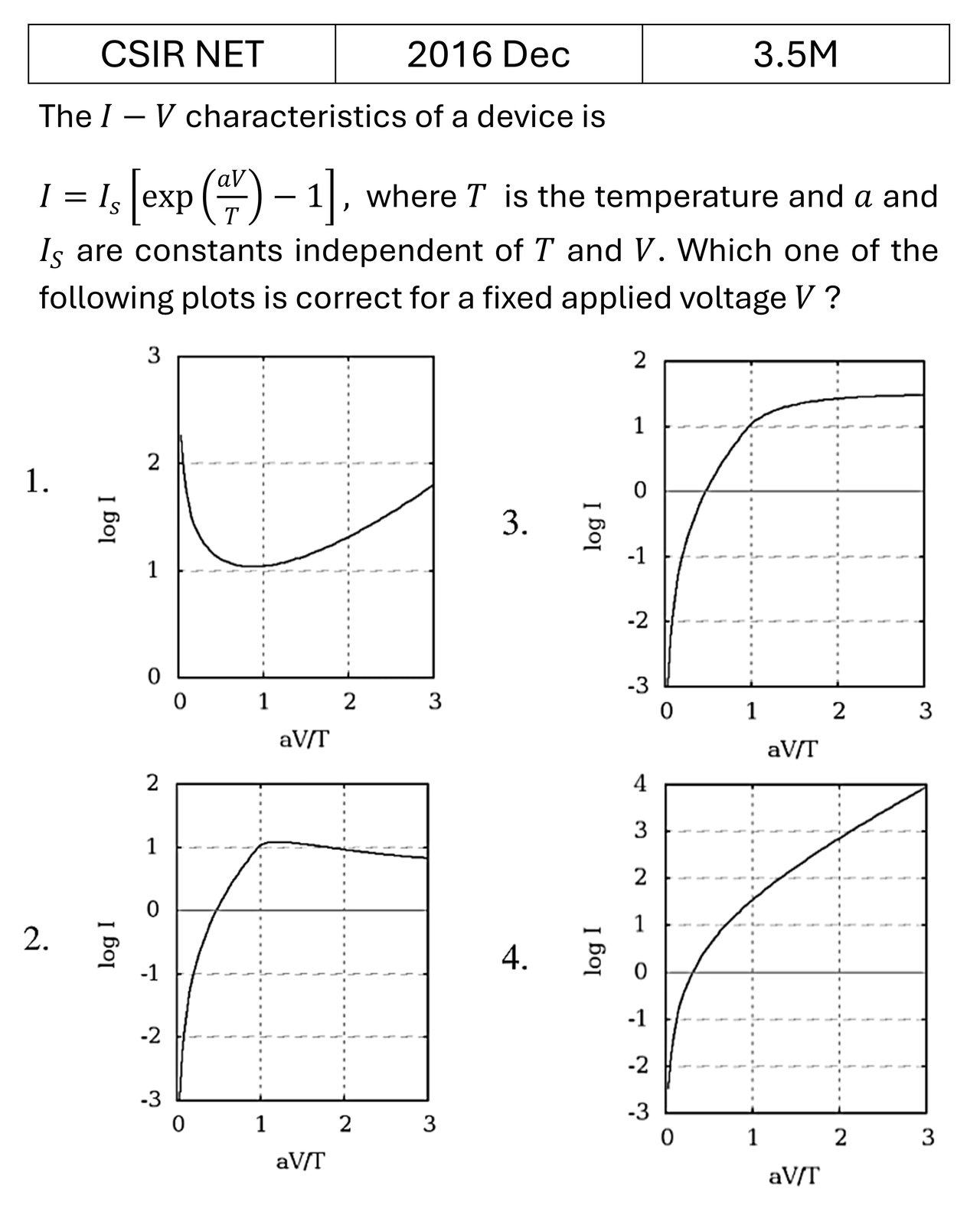

The $I-V$ characteristics of a device is

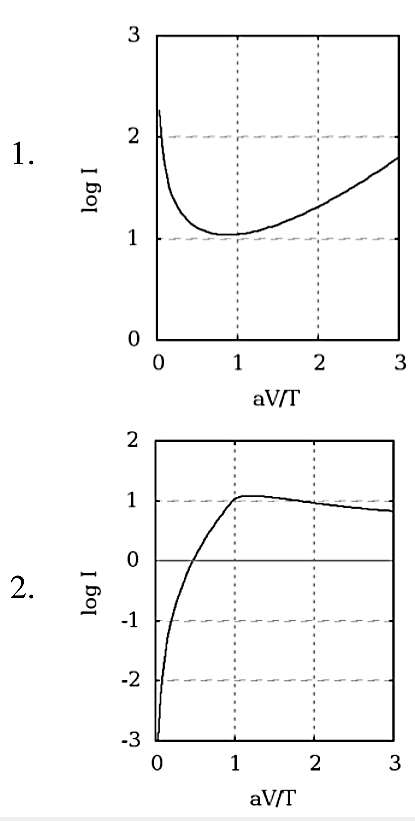

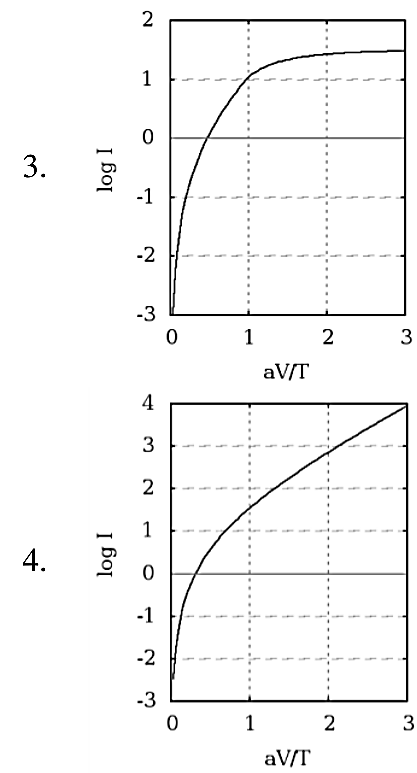

$I=I_s\left[exp\left(\frac{aV}{T}\right)-1\right],$ where $T$ is the temperature and $a$ and $I_S$ are constants independent of $T$ and $V$. Which one of the following plots is correct for a fixed applied voltage $V$?

1. 1
2. 2
3. 3
4. 4

Correct answer: Option 4
