Consider a rectangular wave guide with transverse dimensions 2 m\times 1 m driven with an angular frequency \omega ={10}^{9}rad/s. Which transverse electric (TE) modes will propagate in this wave guide?

Waveguides — CSIR Net PYQ (Question 1)

A Waveguides previous-year question (PYQ) from Electromagnetism (CSIR Net). Read the question, check the correct answer, then practise the full topic.

Question 1 of 7 · 5.0 marks

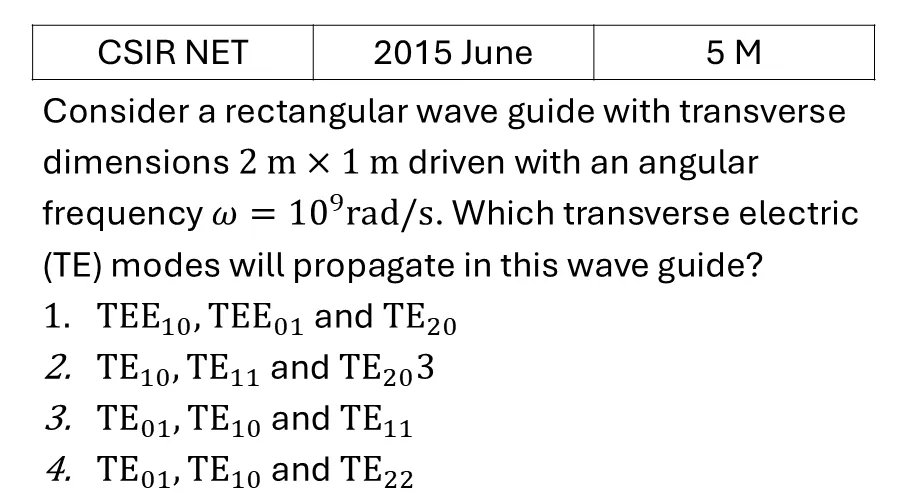

Consider a rectangular wave guide with transverse dimensions

2 m \times 1 m

driven with an angular frequency

ω = 10^{9} r a d / s

. Which transverse electric (TE) modes will propagate in this wave guide?

1 $T E E_{10}, T E E_{01}$ and $T E_{20}$
2 $T E_{10}, T E_{11}$ and $T E_{20} 3$
3 $T E_{01}, T E_{10}$ and $T E_{11}$
4 $T E_{01}, T E_{10}$ and $T E_{22}$

Correct answer: Option 1
